JULY 2022 NEWSLETTER
- MilliBox - Melcom Introduce MilliBox a Modular & Cost effective Anechoic Chambers
- Southwest Microwave - New SSBB Miniature Multi-Pin Board-to-Board Connector
- Copper Mountain Technologies - New Multi-Port VNAs and New S5180B 18 GHz Pulse capability
- Eravant - Proxi-Flange - Contactless Flange Waveguide and Wave-Glide Rail System for more efficient mmW Tests
- Misotech - Filters
- Noisecom - Introducing Programmable Noise Generators
|
|

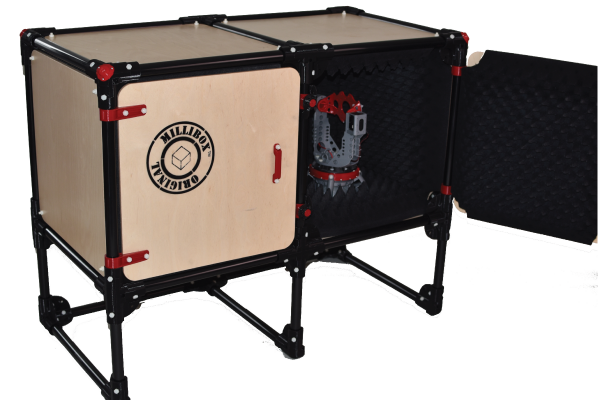

Introducing MilliBox mmWave Anechoic Chamber and Positioner System |
|
MilliBox mmWave Antenna Test System consists of a mmWave Anechoic Chamber and 3D Antenna Positioner product line. |
|
MilliBox mmWave Antenna Test System provides the following benefits:
- Compact and for individual usage, therefore always available when you need it
- Cost competitive even against DIY setups
- Modular, it evolves with your needs
- Flexible and expandable software platform
|
| |
|
- MilliBox is constructed out of modular cubes which are combined to achieve the far field distance required
- All MilliBox chambers are equipped with an instrument bay below the chamber deck, such that instruments like Spectrum Analyser and VNA are placed close to the device under test
|
|

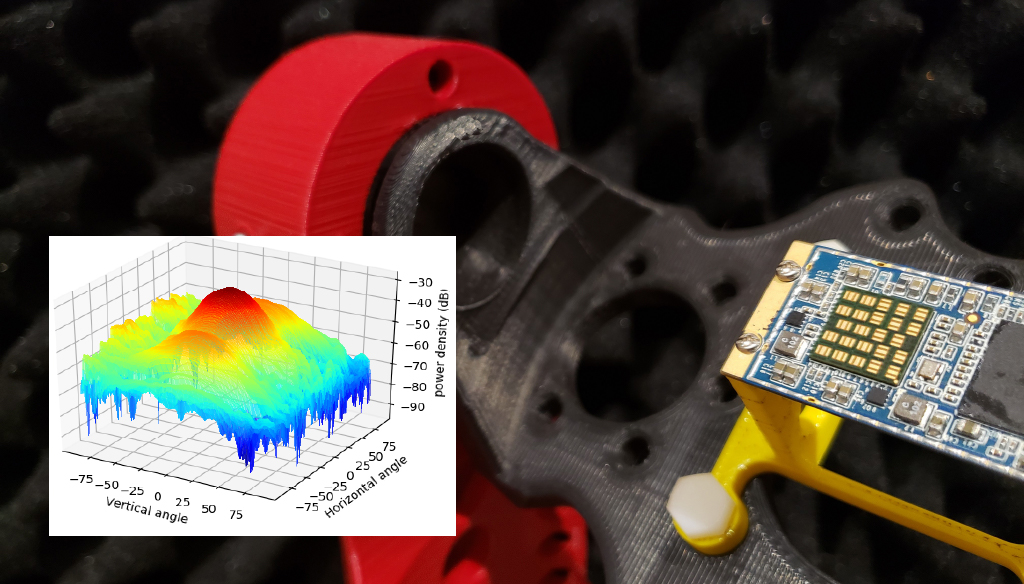

mmWave 3D Antenna Positioners |
| - MilliBox chambers are equipped with 3D antenna positioners Gimbals.
- The positioners are made of plastic material therefore reducing stray mmWave reflection
- Positioner control interface is USB software controller via Python source code. As a result, the user can modify and augment the software capabilities easily
- The controller can run on any platform
|
|
 | Click below for Product Guide |
| | | Click below for video on MilliBox |
| |
|

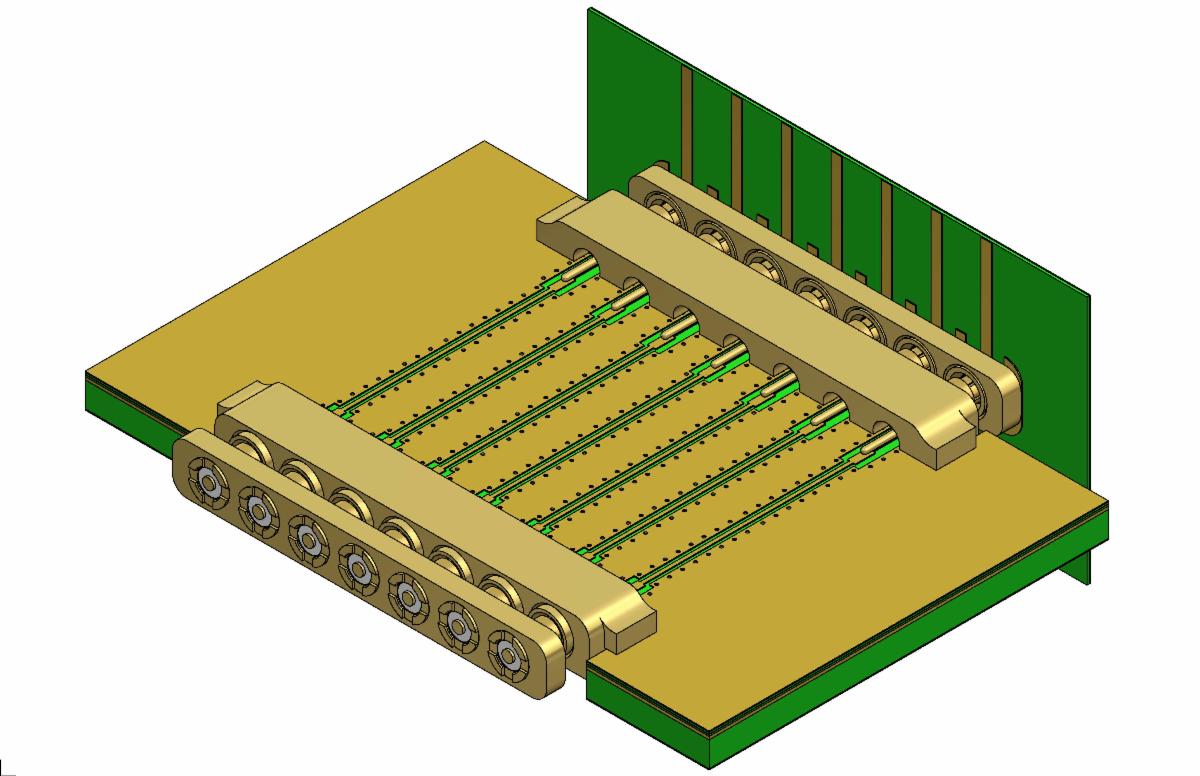

New SSBB Multi-Pin Board-to-Board Connector up to 67 GHz |
|
| - Freely configurable to meet PCB requirements
- Available in surface or edge mount configurations for parallel and perpendicular board mating
- Allows multiple high density connections
- Lowest-in- the-industry mating and de-mating forces
- Supports the engineering need for miniaturisation without sacrificing performance
- Designed for Aerospace Space and Hi REL Applications
|
|

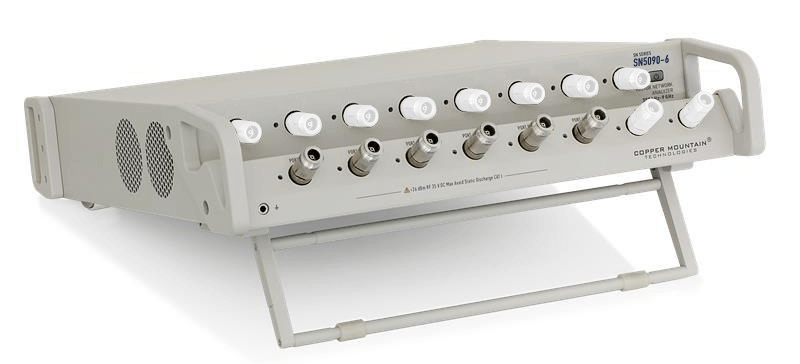

New Multiport VNAs available in 6,8,10,12,14 and 16 port configurations and New S5180B VNA |
|
| - Frequency range: 300 kHz - 9 GHz
- Wide output power range: -45 dBm to +10 dBm
- Dynamic range: 140 dB typ (10 Hz IFBW)
- Measurement time per point: 24 μs per point, min typ.
- Time domain and gating conversion included
- Frequency offset mode, including vector mixer calibration measurements
- Up to 500,001 measurement points
- Precision calibration methods and automatic calibration
|
|

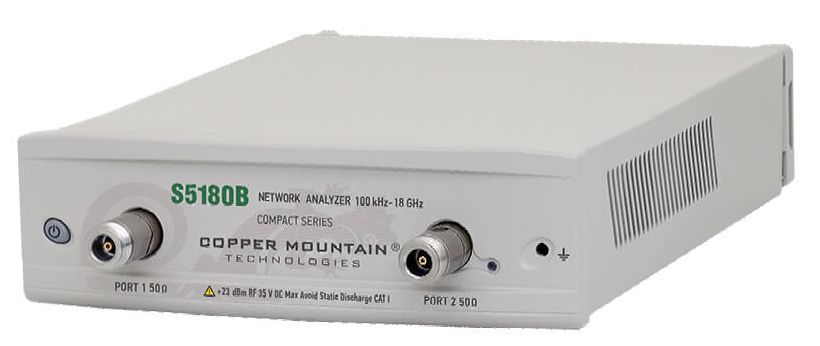

New S5180B VNA (2-Port 18 GHz Analyser) |
| - Pulse measurement capability
- Frequency range: 100 kHz to 18 GHz
- Measured parameters: S11,S21, S12, S22
- Sweep types: Linear frequency, log frequency, segment, power sweep
- Dynamic range: 130 dB typ (10- Hz IF BW)
- Measurement speed: 24µ typ
- Output power adjustment range: -45 dBm to + 10 dBm
- Measurement points per sweep: up to 200,001
|
|

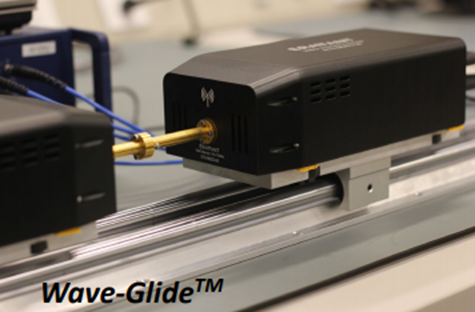

| - Assures easy and fast precision alignment of frequency extender heads for mmW test
- Reduces set up time, increases repeatability
- Optimises performance by eliminating mis-alignment conditions
- Especially effective when used with the Proxi-Flange™ range
|
|
Proxi-Flange™ Contactless Flange |
|
| - To enhance the mmW VNA test system, Eravant has introduced a contactless flange design
- Contactless Flange is a waveguide section with a novel flange design which forms the RF choke to eliminate the need of perfect mechanical connection
- Offered in 6 waveguide bands covering the frequency range of 50 to 220 GHz
- Reduces mmW setup time and increases test repeatability
|
|
| Click on the Proxi-Flange and WaveGlide Presentation |
| | | Click below for the video on Proxi-Flange and Wave-Glide |
| |
|
Melcom Now Supply A Range Of Misotech Filters |
|
Cavity Filters Military, Defence & Commercial Applications |
| - Low loss
- Very high selectivity
- Wide range of bandwidth -0.5% to 70%
- High peak power
- Excellent temperature stability
- Low IMD designs available
- Compliant L Typical performance
- Qualified to MIL standards
|
|
MMIC Filters Military, Defence & Commercial Applications |
| - GaAs PD25-00, 100um
- High frequency up to 50 GHz
- Standard MMICs of defence
- Customised MMICs
- RoHs compliant
- Storage Temperature: -65±150 °C
- Operating Temperature: -55±125 °C
- Power Range: +30 dBM max
- Qualified to MIL standards
|
|
MEMS Filters Military, Defence & Commercial Applications |
| - Precision MEMS process
- High frequency up to 50 GHz
- Silicon substrate
- Au Wire bondin, QFN Package
- RoHs Compliant
- Storage Temperature: -55_+125 °C
- Operating Temperature: -55_+85 °C
- Power Range: +35 dBM Max
- Qualified to MIL standards
|
|
Ceramic Filters Military, Defence & Commercial Applications |
| - High Q Factor
- Low Insertion Loss
- Wide Frequency range (200 MHz to 6
- GHz)
- High Frequency and Mechanical
- stability
- Notch Filters available
- Surface mount and thru-hole mount
- 50 Ohm standard, 75 Ohm impedance
- available
- Custom designs available
- Available in tape and reel packing
- Sealed packages available
- Temperature Range: -55 to 85 °C
- Temperature Stability: (±5 ppm/°C)
- Compliant to MIL & RoHs Specs
|
|
LC Lumped Filters Military, Defence & Commercial Applications |
| - Small size, low profile
- Leaded, surface mount, PC mount and connectorised
- Hermetically seated package available
- Wide range of transfer functions
- 30 kHz to 20 GHz
- Temperature Range: -55 to 85 °C
- Temperature Stability: (± 5 ppm/°C)
- Compliant to MIL & RoHs Specs
|
|
Waveguide Filters Military, Defence & Commercial Applications |
| - 0.1 to 20% bandwidth
- Extremely low loss
- High Power handling
- High power capacity
- Compliant to MIL & RoHs Specs
|
|
Introducing Programmable Noise Generators |
|

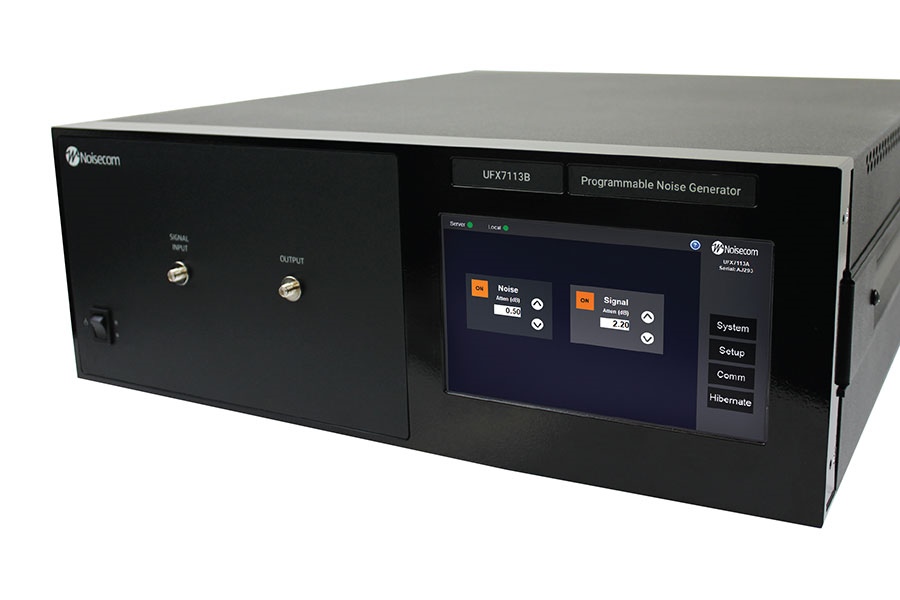

UFX7000B Broadband AWGN Noise Generator |
| - Output White Gaussian noise
- Output power up to +30 dBm
- 127 dB of attenuation; 0.1 dB step size
- Units > 2 GHz have total attenuation of 79.9 dB
- Low distortion signal path
- Power 115 VAC, 60 Hz
- Noise attenuator accuracy: ±0.2 dB or 0.5% at 1 – 500 MHz ±0.2 dB or 1% at 0.5 – 1.0 GHz ±0.3 dB or 2% at 1 – 2 GHz
- Standard connectors SMA female
- 7” touch screen display
- Dimensions: 17.25 in. wide x 6.50 in. including feet, high x 19.50 in. deep
- Removable hard drive for added security
- Operating Temperature: -10° to +65°C
|
|

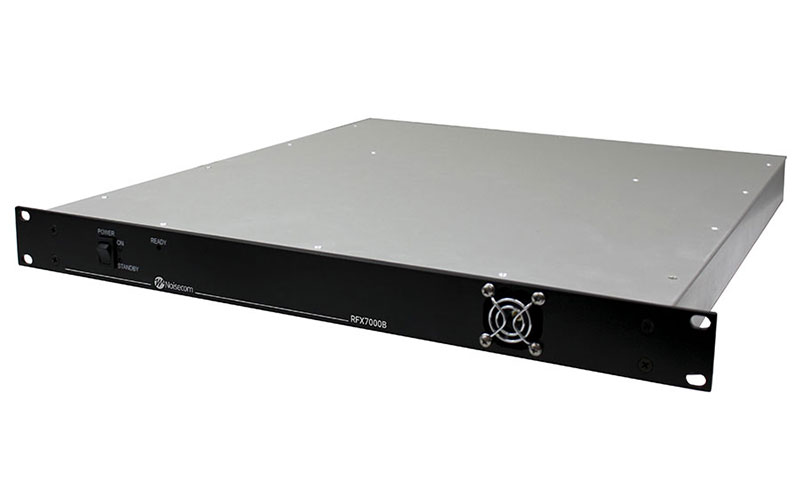

RFX7000 Broadband AWGN Noise Generator |
| - Output White Gaussian noise
- 127 dB of attenuation; 0.1 dB step size
- Units > 2 GHz have total attenuation of 79.9 dB
- Low distortion signal path
- Noise attenuator accuracy:
- ±0.2 dB or 0.5% at 1 – 500 MHz
- ±0.2 dB or 1% at 0.5 – 1.0 GHz
- ±0.3 dB or 2% at 1 – 2 GHz
- Standard connectors SMA female
- Power 115 VAC, 60 Hz; 110 VAC, 220 VAC
- Operating Temperature: -10° to +65°C
|
|
|
|
|
|
|
