mmW TESTING SOLUTIONS FROM COPPER MOUNTAIN TECHNOLOGIES

AND ERAVANT

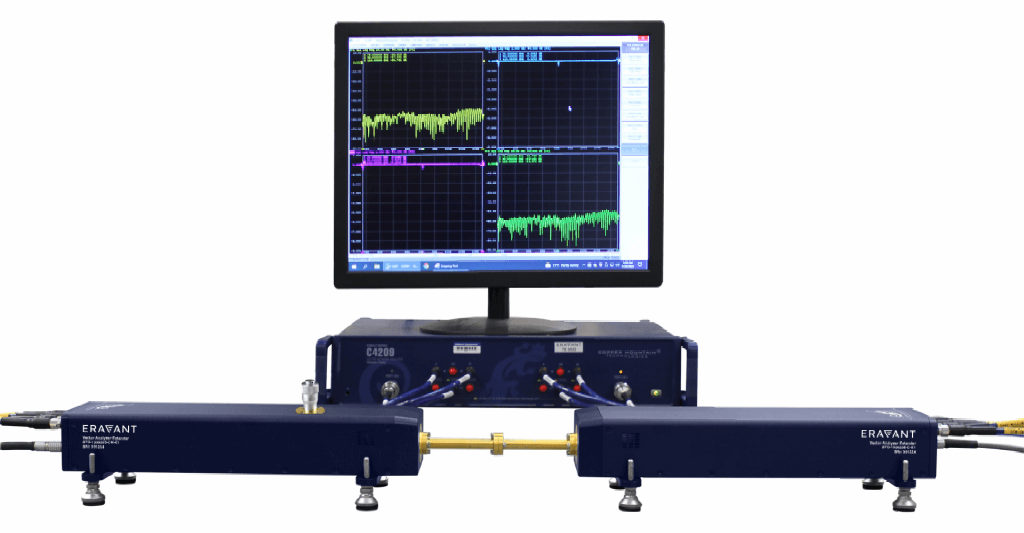

They have partnered to deliver co-branded Frequency Extender Modules with options for output power adjustments and high power output anchored by a 9 GHz VNA

Benefits of the New Frequency Extension Modules:

Portable, scalable and affordable mmW testing solution
9 GHz VNA anchor CMT and Eravant Frequency Extenders and 20 GHz VNA for maximum frequency of 330 GHz with third party extenders
Works with Wave-Glide Rail fixture and Proxi-Flange (see below) for simplified and highly repeatable test

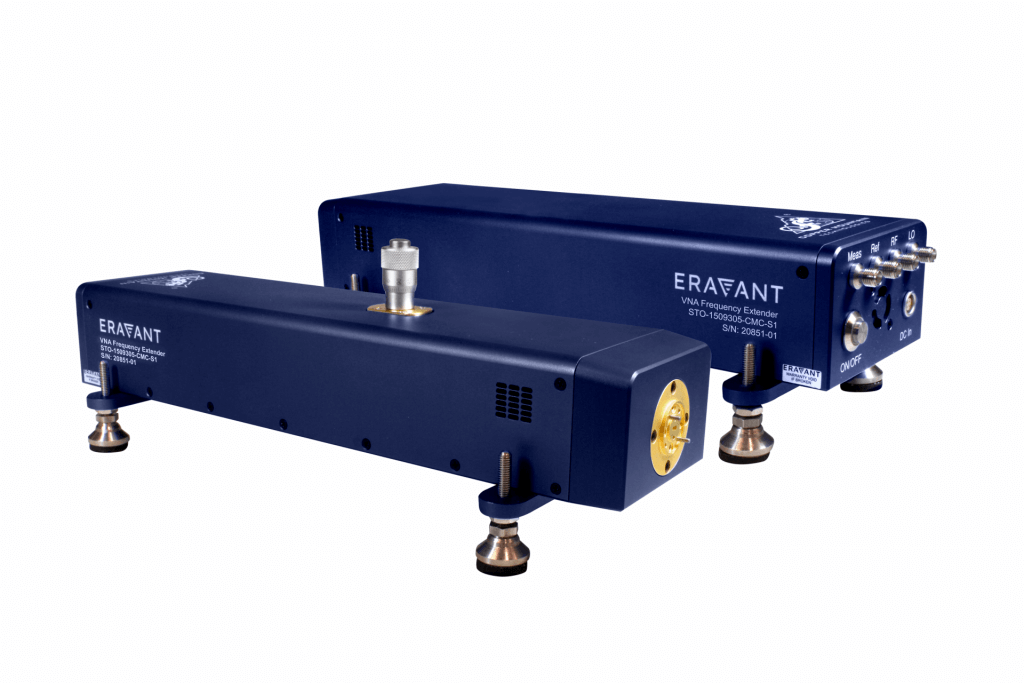

New CobaltFx Frequency Extension Modules are offered in the following frequencies and bands:

FET-WR15, V Band (50 to 75 GHz)

FET- WR15-HP, V Band (50 to 75 GHz)

FET-WR12, E Band (60 to 90 GHz)

FET-WR12-HP, E Band (60 to 90 GHz)

FET-WR10, W Band (75 to 110 GHz)

FET-WR10-HP, W Band (75 to 110 GHz)

Click here for full range of new Frequency Extension Modules provided

Learn more about Copper Mountain Technologies

Wave-Glide™ Rail System &

Proxi-Flange™ Contactless Flange both enhance mmW Testing Solutions

Assures repeatable precision alignment of frequency extender heads for mmW test
Reduces set up time
Optimises performance by eliminating mis-alignment conditions
Especially effective when used with the Proxi-Flange™ range

Click here for full range of Wave-Glide products provided

Click here for full range of Proxi-Flange products provided

To enhance the mmW VNA test system, Eravant has introduced a contactless flange design
Contactless Flange is a waveguide section with a novel flange design which forms the RF choke when making contact to another waveguide flange to eliminate the need of perfect mechanical connection
Offered in 6 waveguide bands covering the frequency range of 50 to 220 GHz

Learn more about Eravant

Contact Melcom - for detailed specification, pricing & availability
